ITEM DESCRIPTION

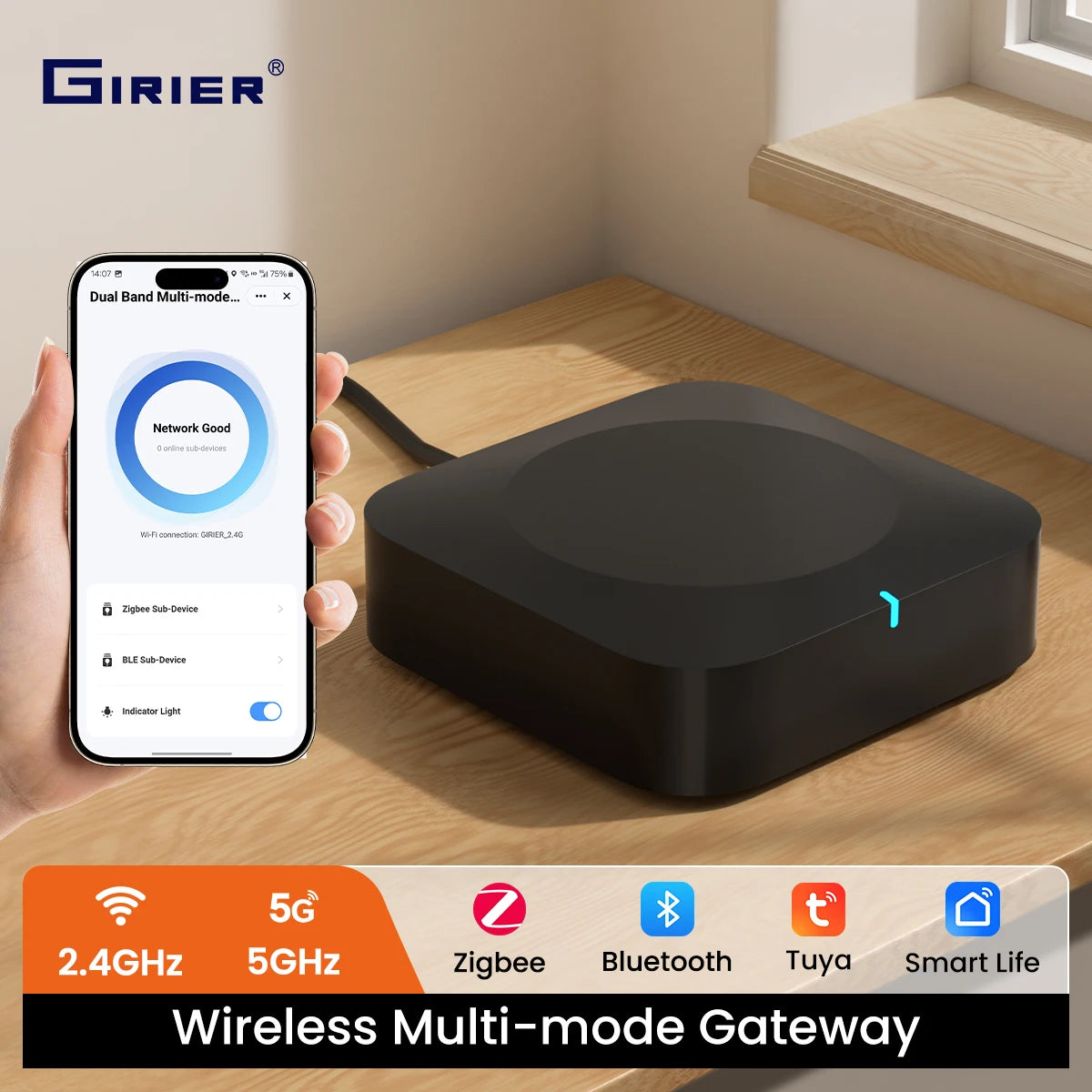

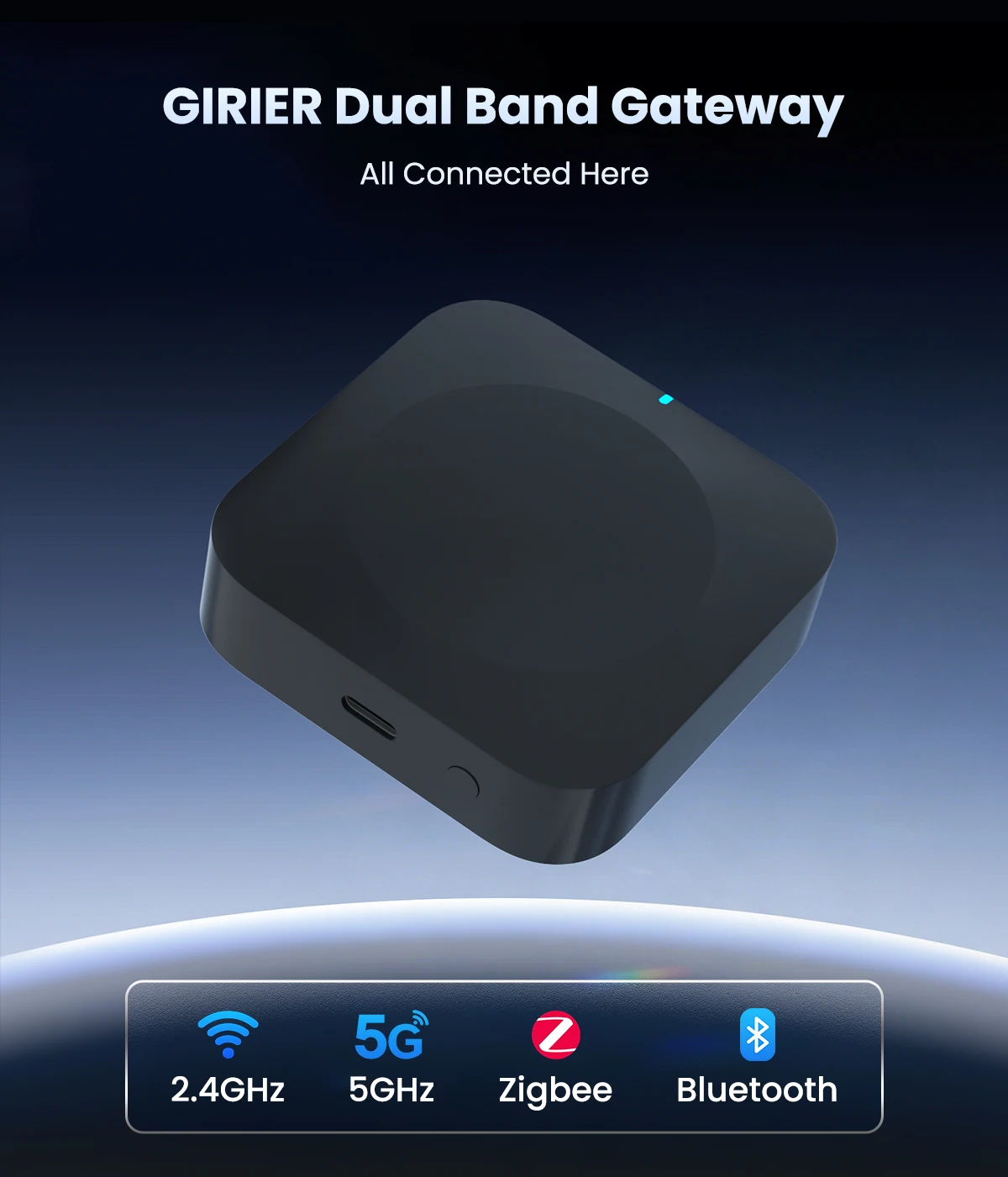

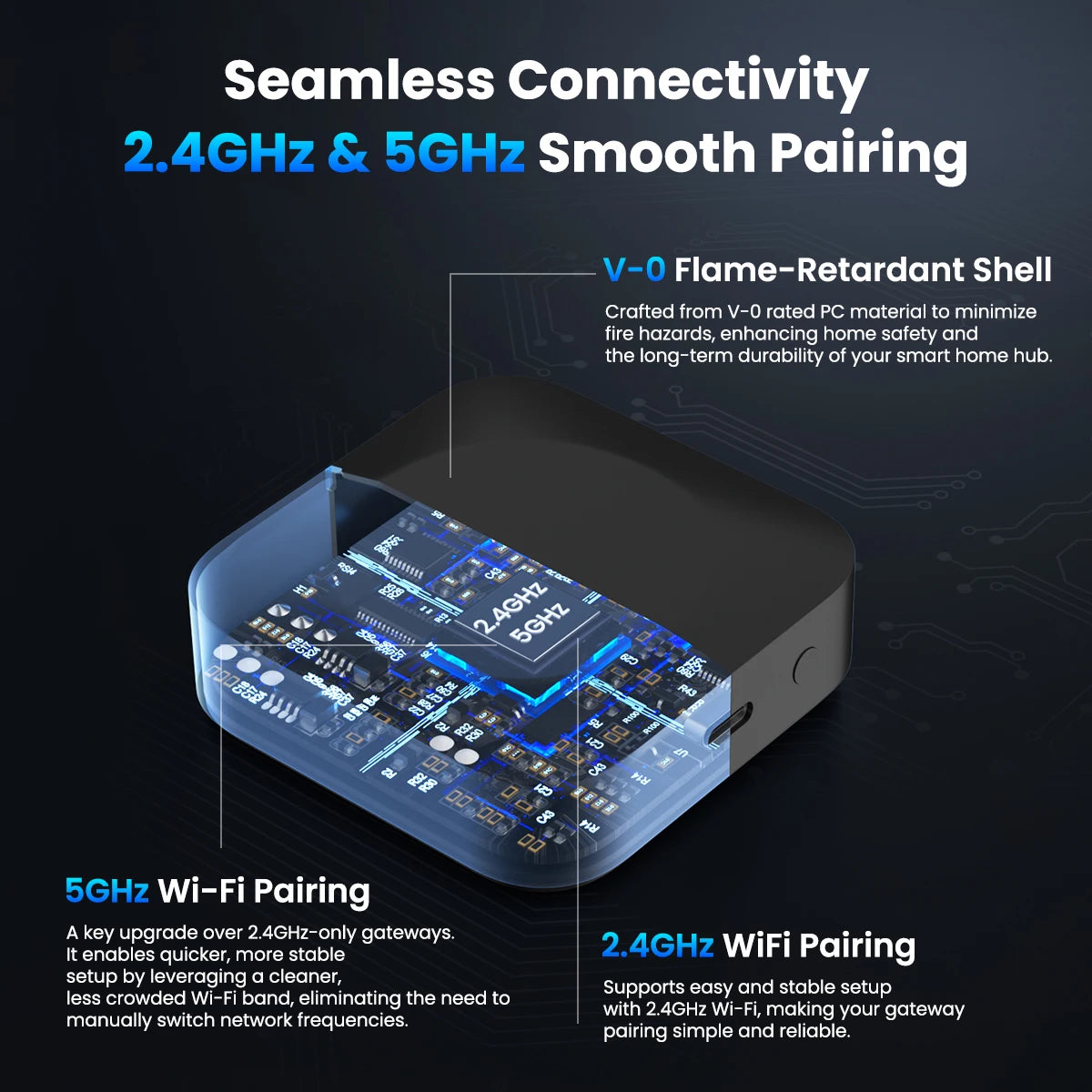

Seamless Dual-Band WiFi Connectivity

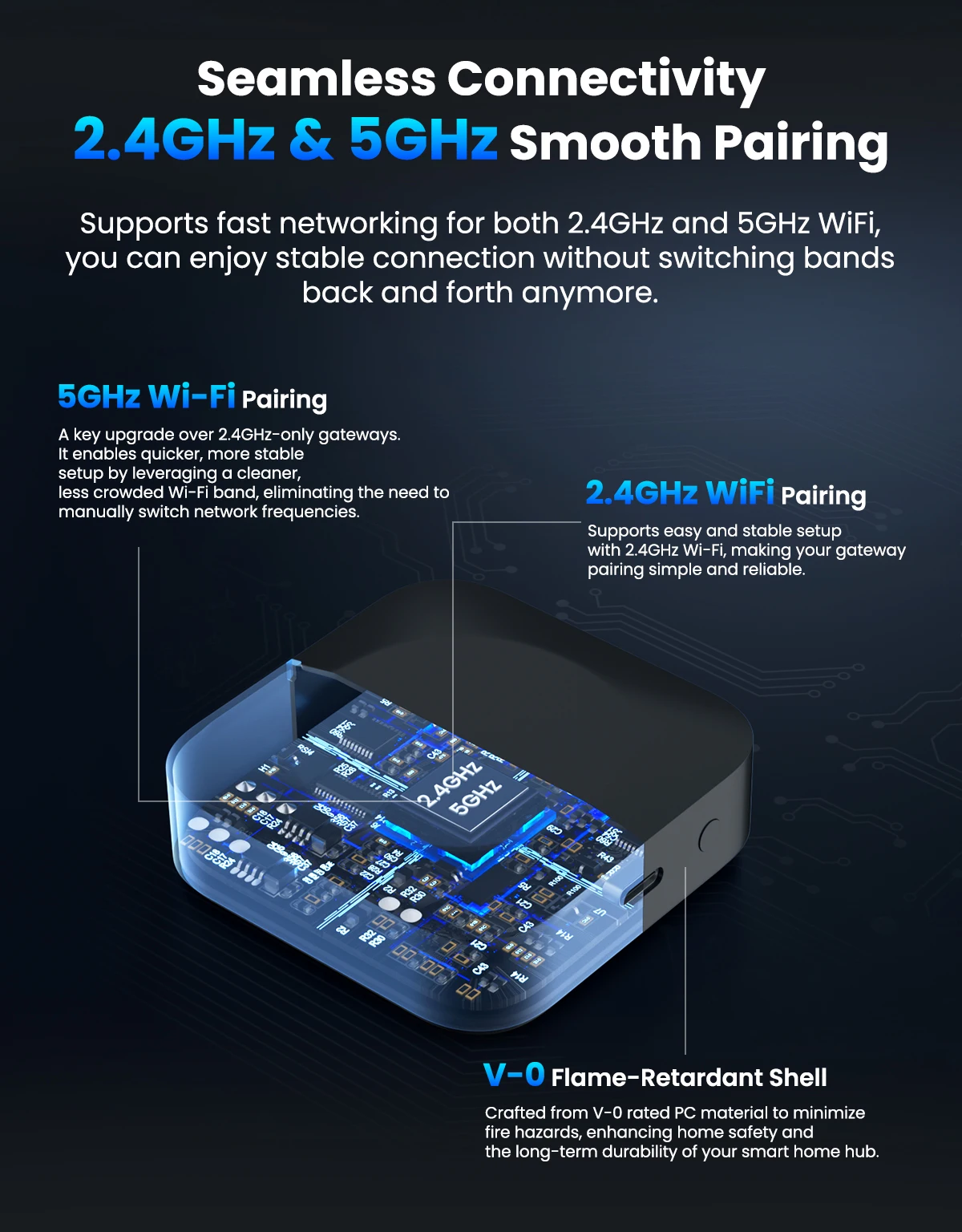

A key upgrade over standard hubs-this multi-mode gateway supports both 2.4GHz and 5GHz WiFi bands. You no longer need to manually switch your phone to 2.4G during pairing, ensuring a faster, smoother, and more stable setup experience in modern high-speed network environments.

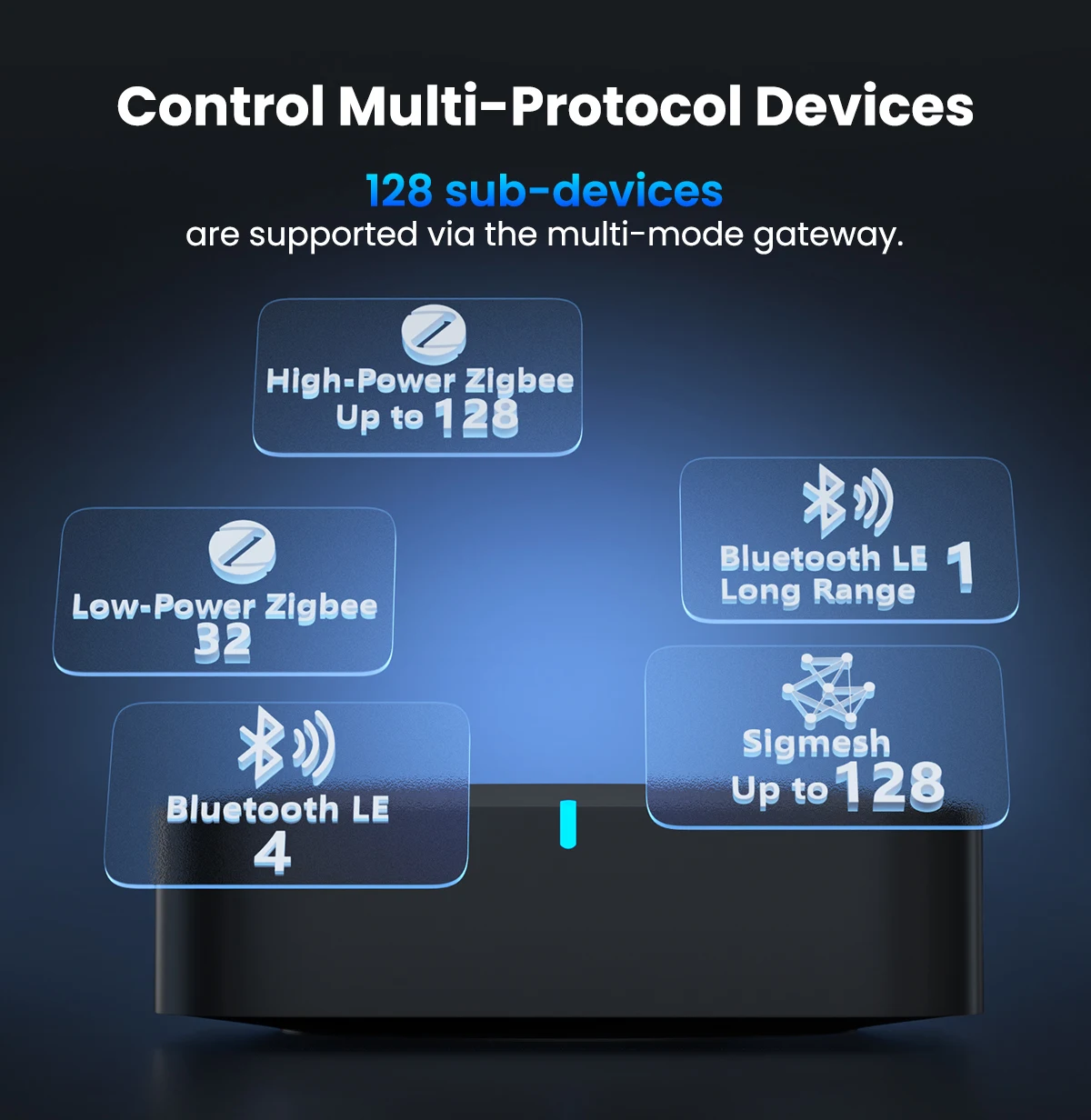

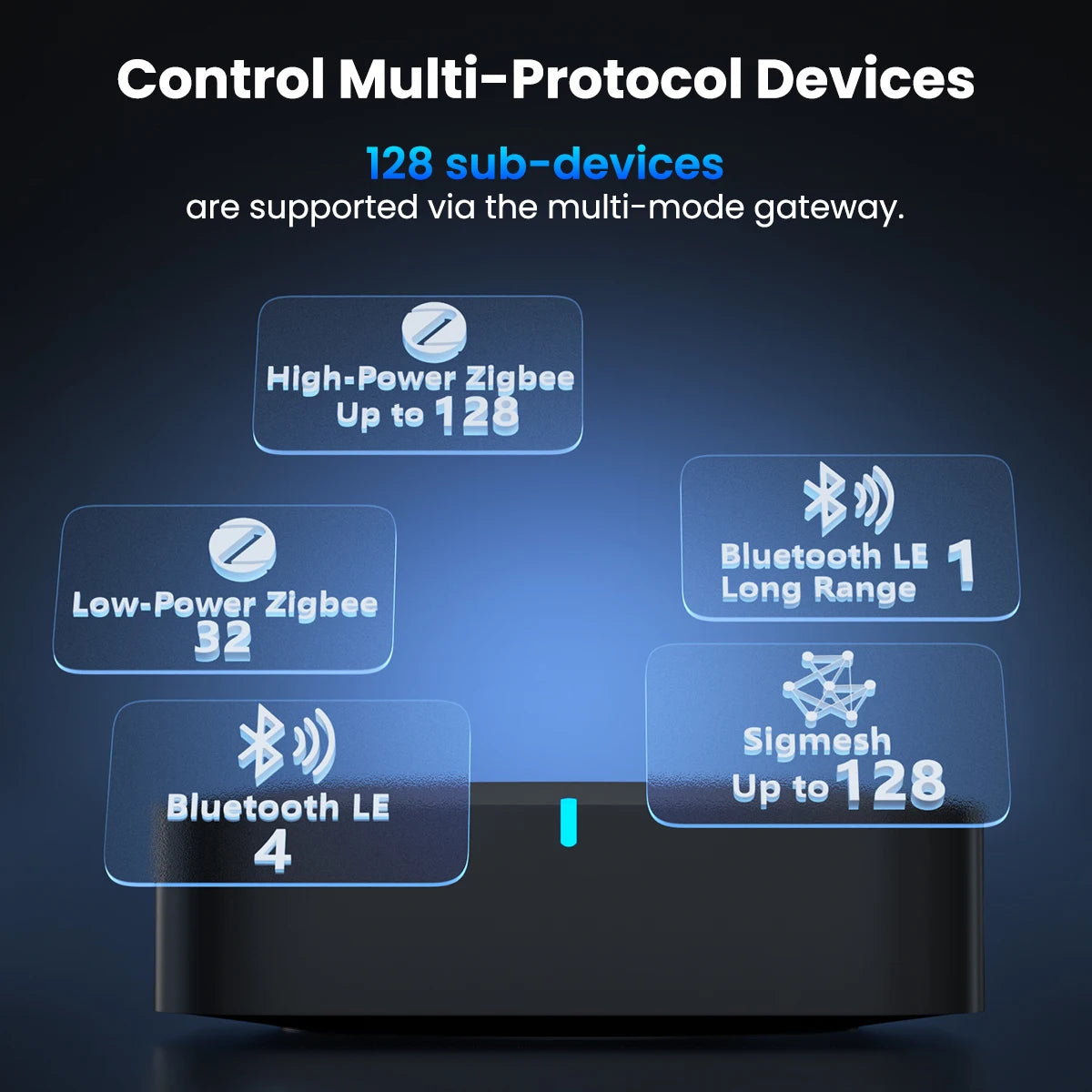

Unified Multi-Protocol Command Center

Simplify your smart home ecosystem by connecting up to 128 sub-devices. This powerful hub bridges ZigBee 3.0, Bluetooth LE, and Sigmesh protocols, allowing you to manage various sensors, temperature controllers, and motors from a single, unified Tuya Smart or Smart Life App interface.

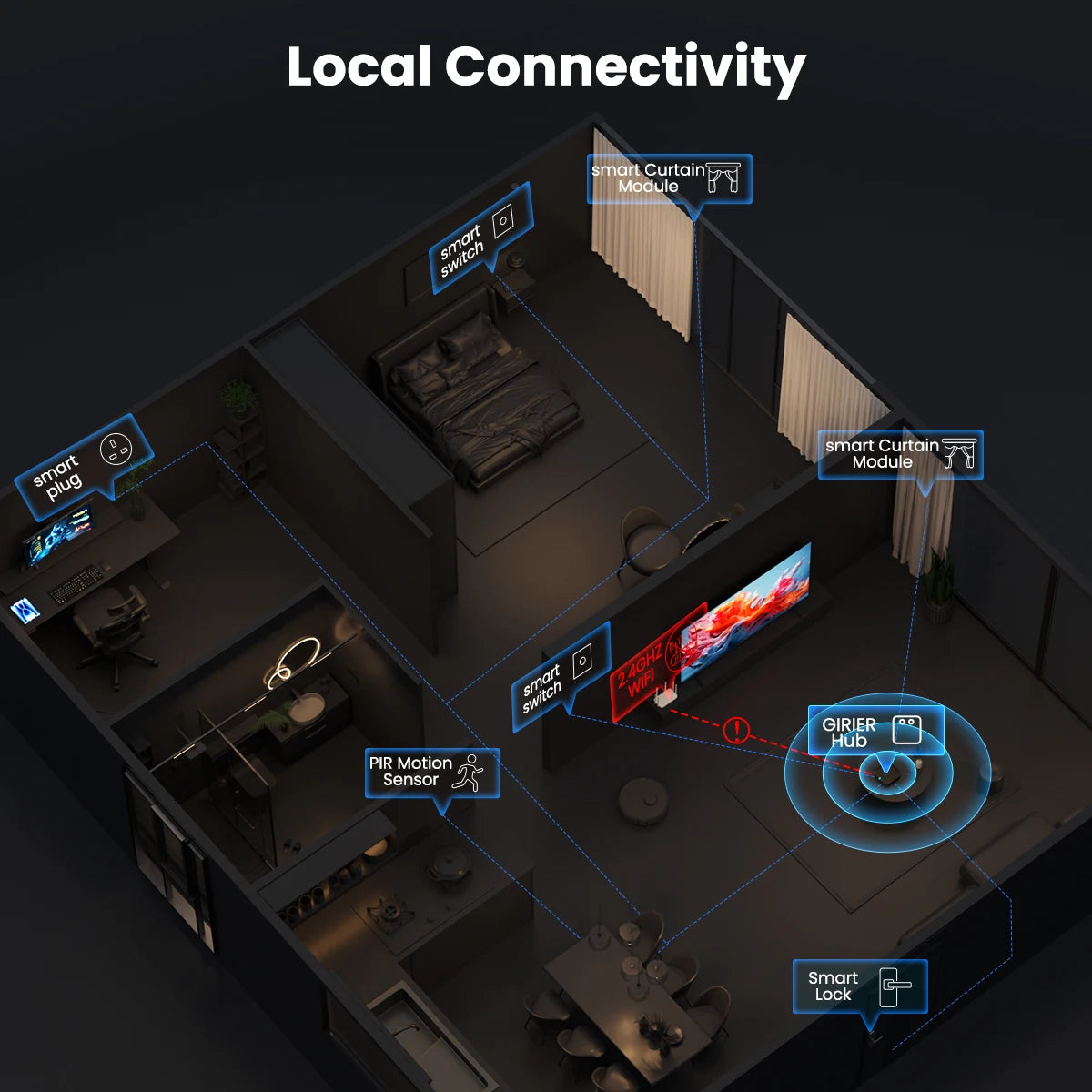

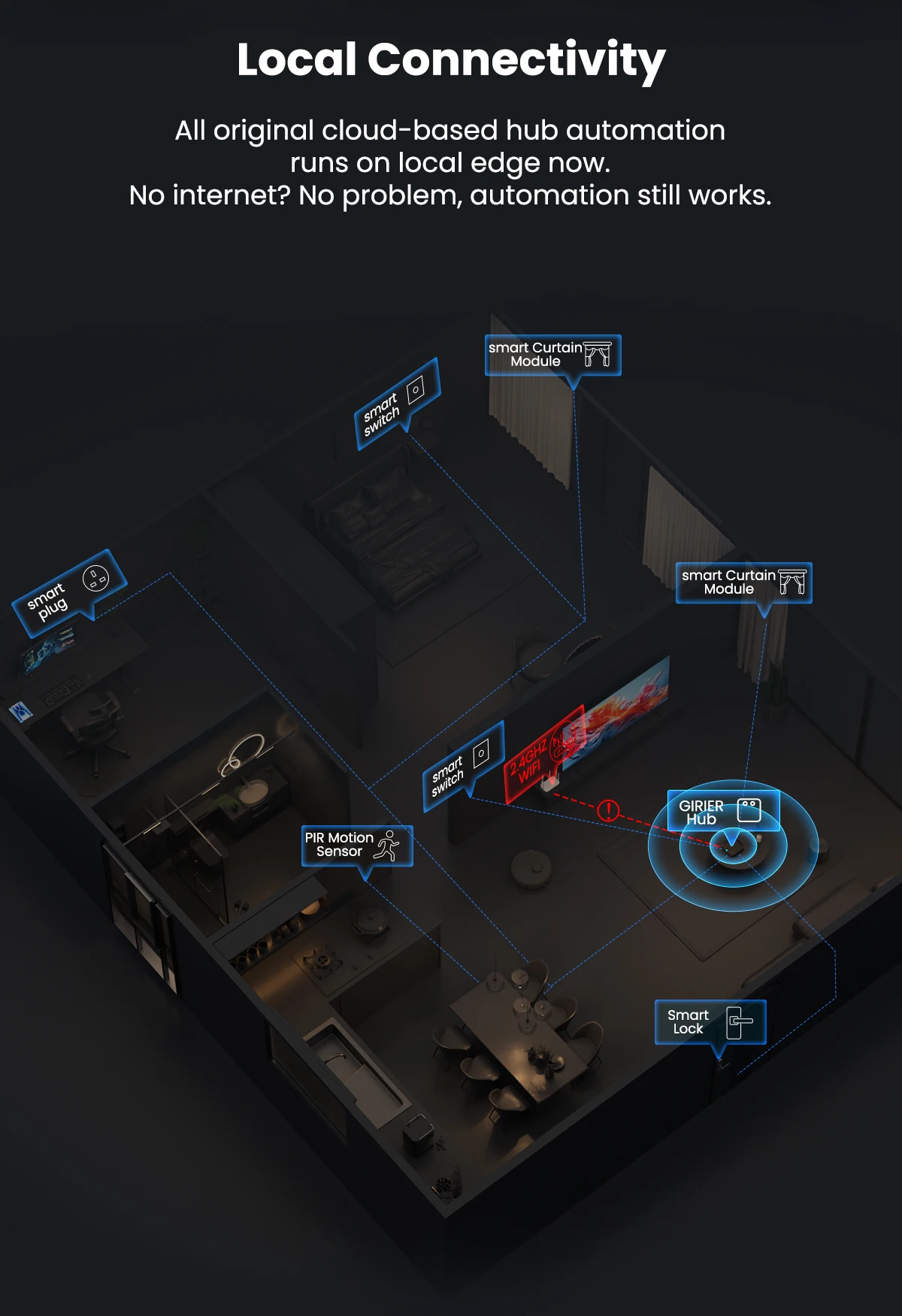

Uninterrupted Local Edge Automation

Keep your home running even if the internet goes down. By shifting cloud-based automation to local edge processing, your pre-set smart scenes-like lights turning on when the door opens-will continue to trigger reliably without relying on an external server or active internet connection.

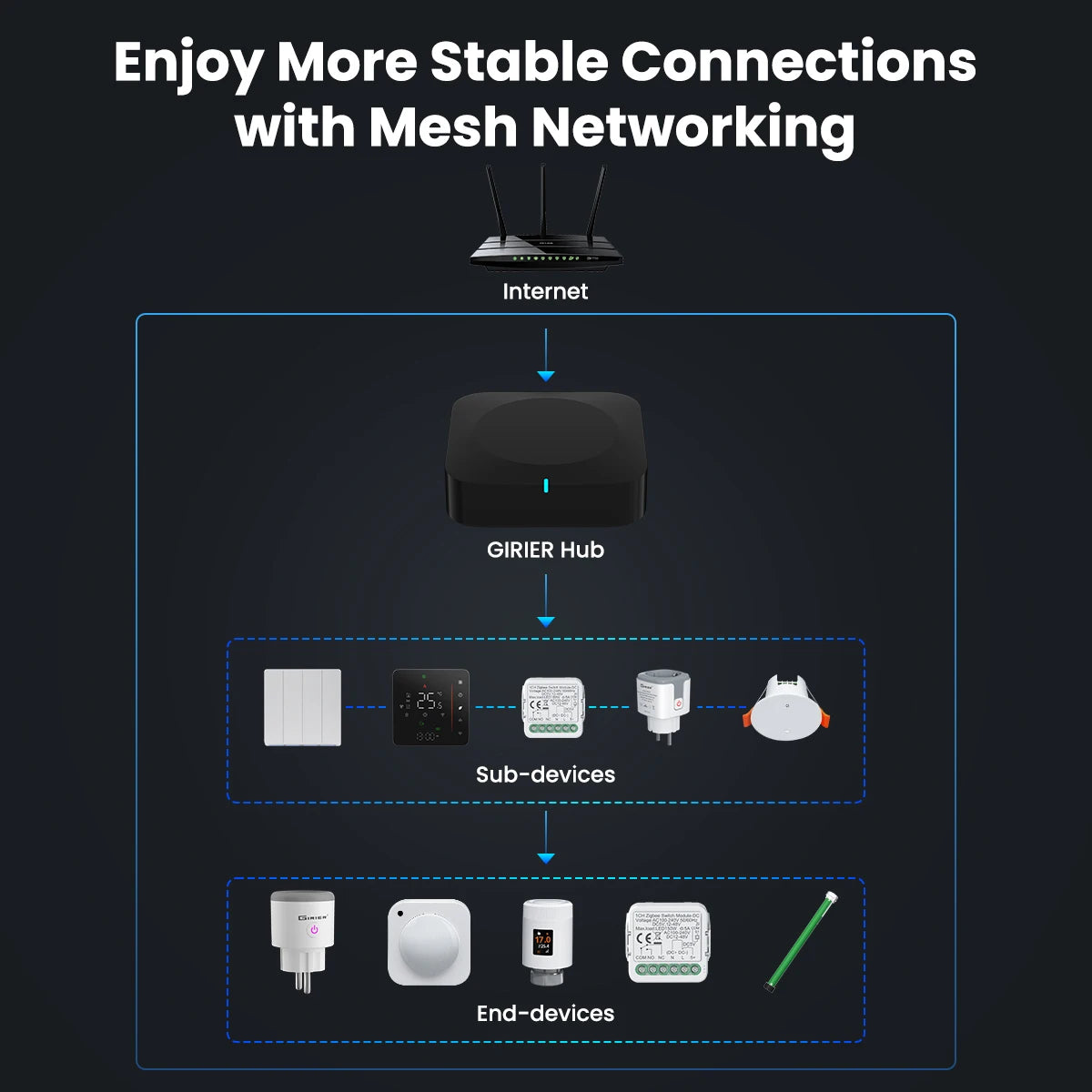

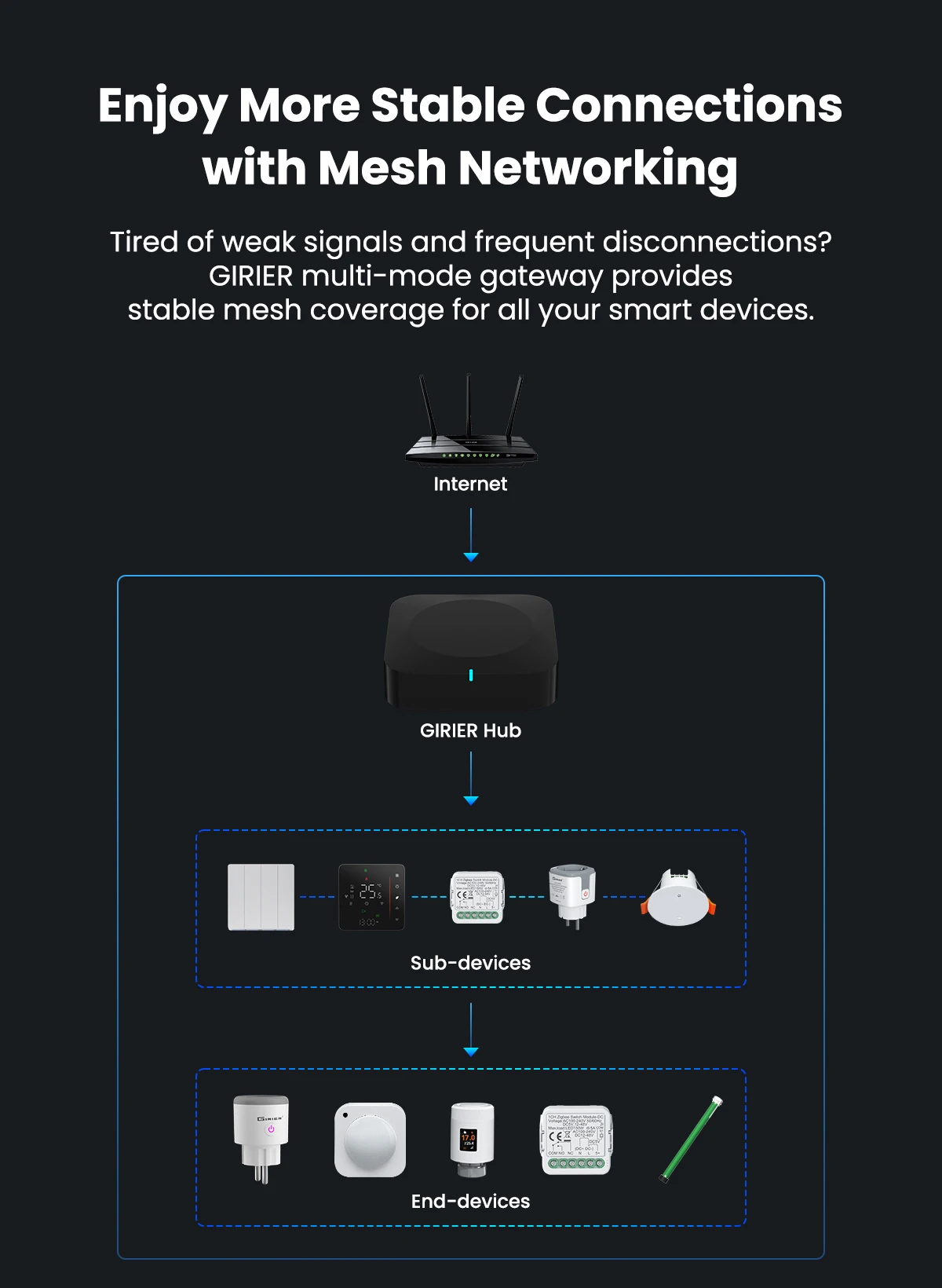

Powerful Signal & Whole-Home Coverage

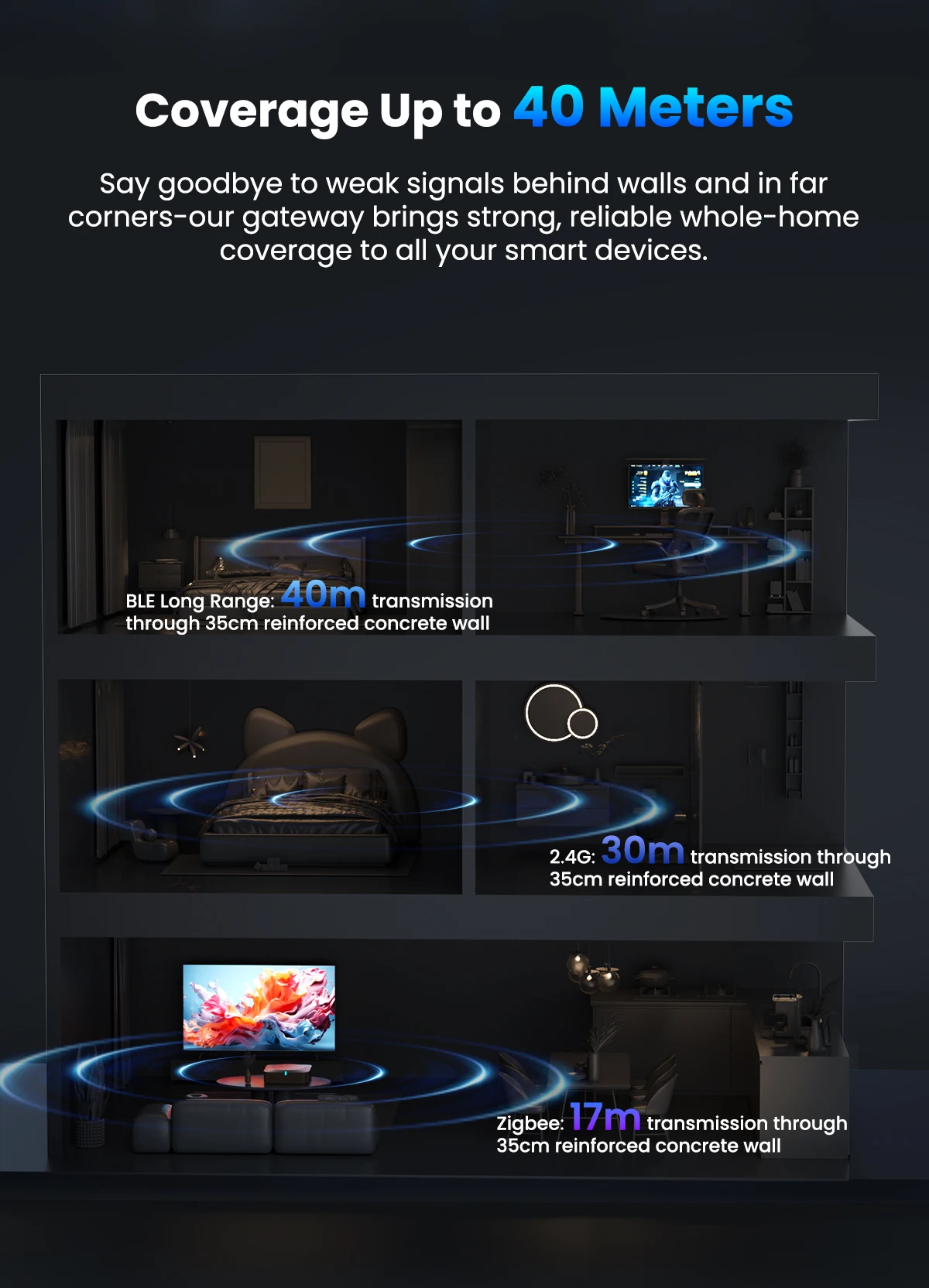

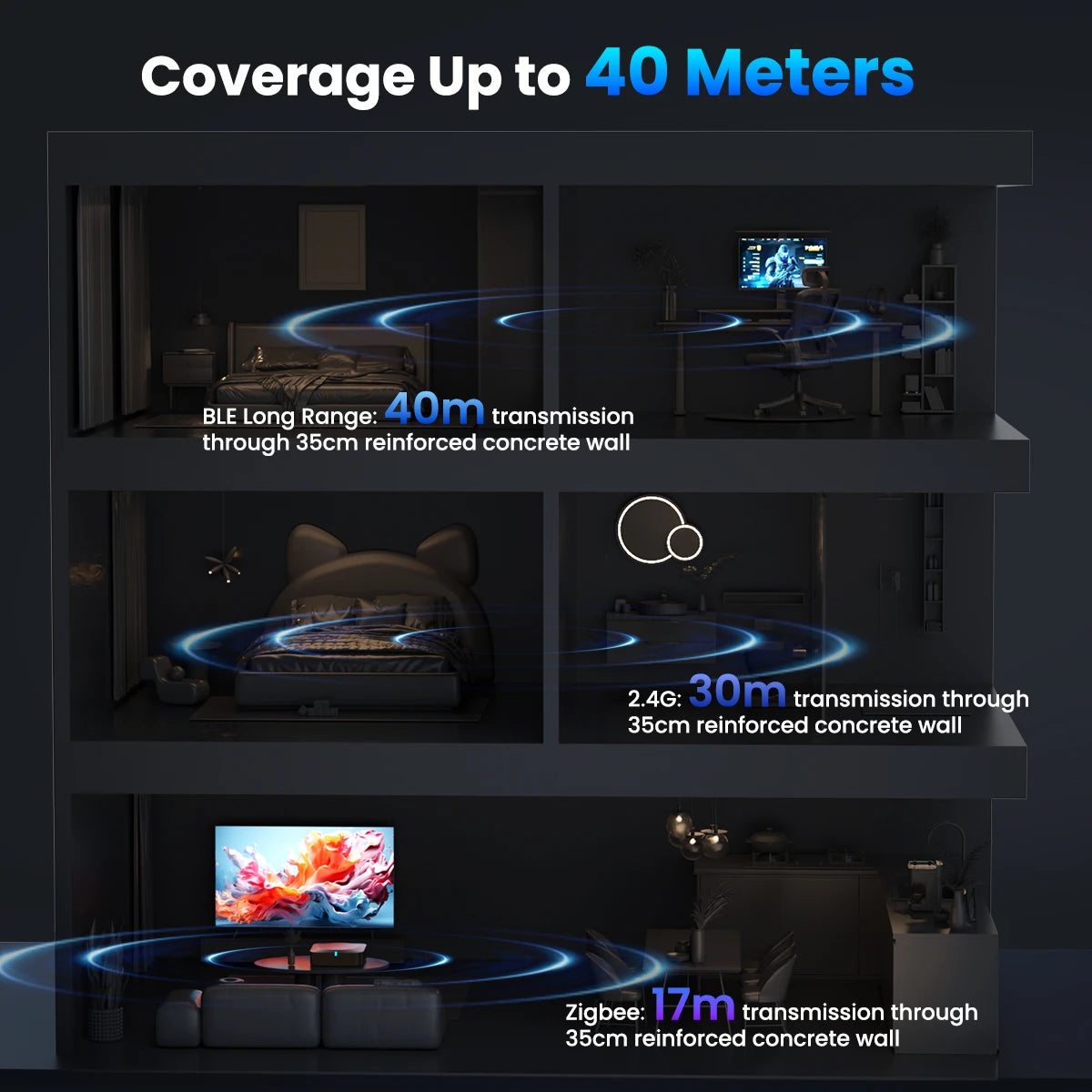

Designed with superior wall-penetration capabilities, this compact hub ensures stable connectivity through up to 35cm of reinforced concrete. With a transmission range of up to 30 meters indoors, it provides a robust and reliable "Mesh" network that eliminates dead zones across your entire home.

Safe, Durable & Voice Assistant Bridge

Built with a V-0 flame-retardant PC shell for maximum durability and safety. This gateway acts as the vital bridge that connects your ZigBee and Bluetooth sub-devices to the cloud. Once linked, it enables compatibility with Alexa and Google Home, allowing you to use your smart speakers for hands-free voice control over all connected lights, switches, and so on.

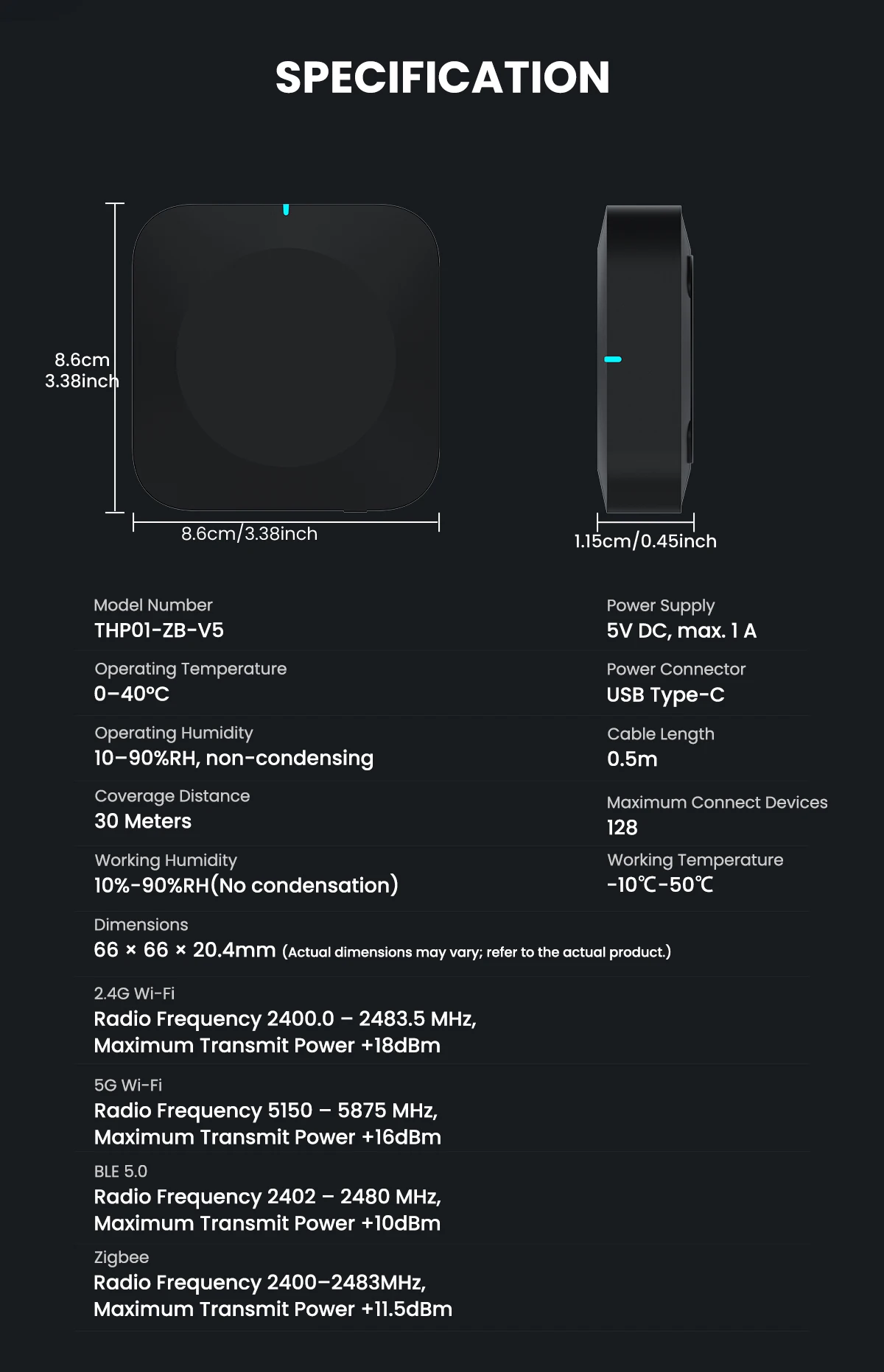

SPECIFICATION

Model Number: THP01-ZB-V5
Power Supply: 5V DC, max. 1 A
Operating Temperature: 0–40°C
Operating Humidity: 10–90%RH, non-condensing
Power Connector: USB Type-C
Cable Length: 0.5m
Dimensions: 66mm × 66mm × 20.4mm (Actual dimensions may vary; refer to the actual product.)
Coverage Distance: 30 Meters
Maximum Connect Devices: 128
2.4G Wi-Fi: Radio Frequency 2400.0 – 2483.5 MHz, Maximum Transmit Power +18dBm
5G Wi-Fi: Radio Frequency 5150 – 5875 MHz, Maximum Transmit Power +16dBm
BLE 5.0: Radio Frequency 2402 – 2480 MHz, Maximum Transmit Power +10dBm
Zigbee: Radio Frequency 2400–2483MHz, Maximum Transmit Power +11.5dBm
Working Temperature: -10℃-50℃
Working Humidity: 10%-90%RH(No condensation)

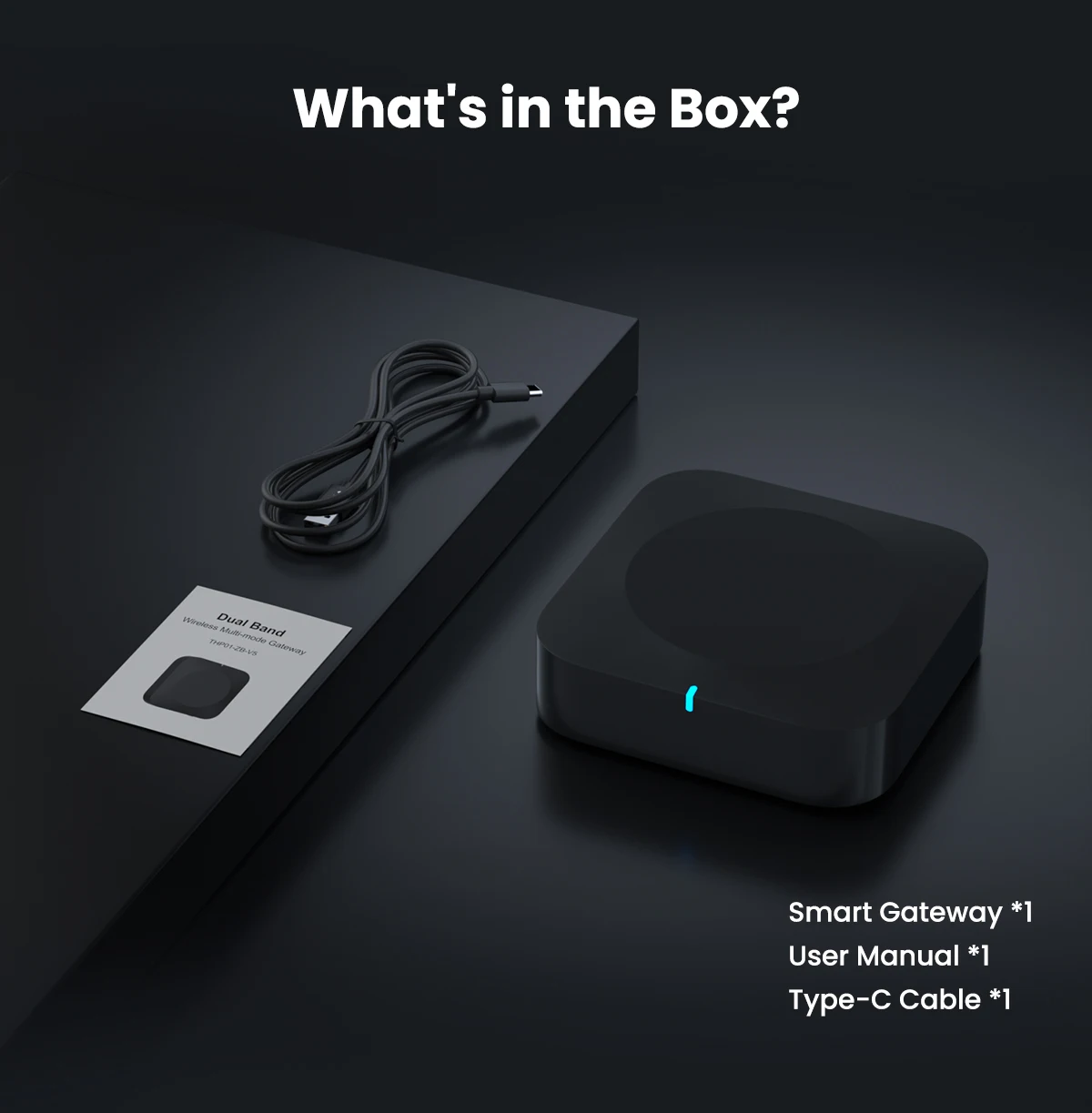

What's in the Box?
